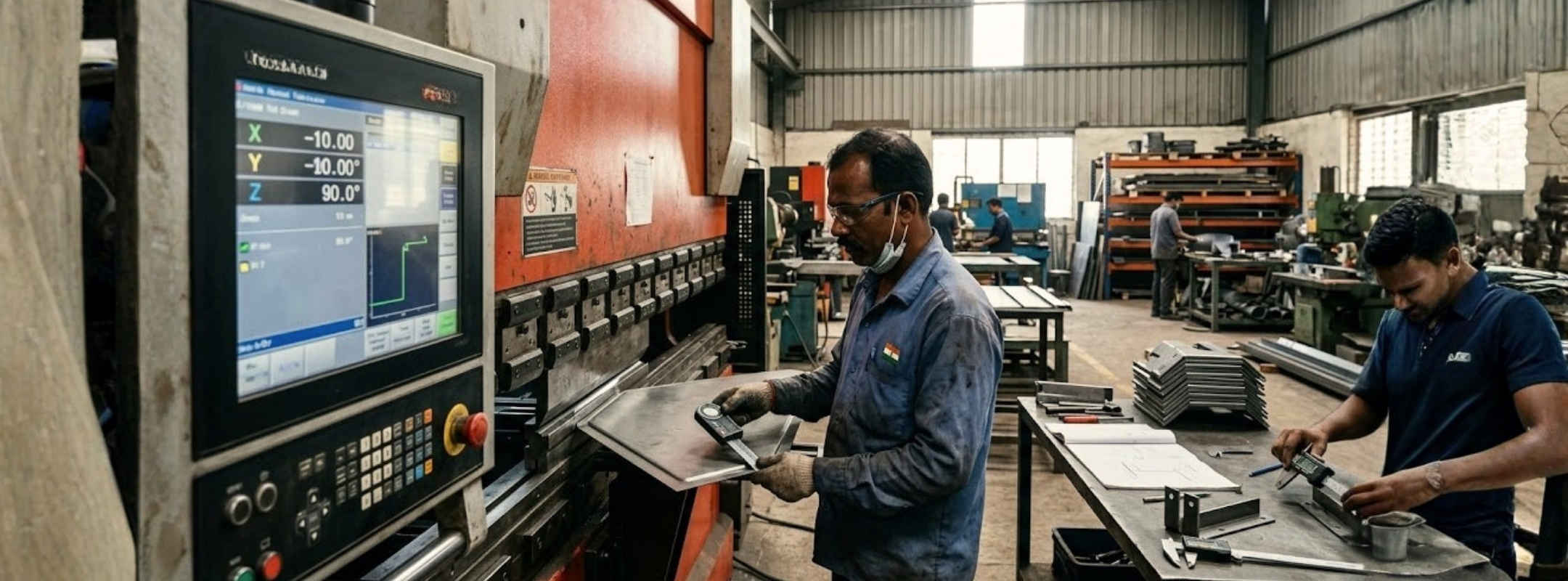

Standard CNC press brake bending typically achieves angular tolerance of about ±0.5 to ±1 degree and linear bend-position tolerances of roughly ±0.1 to ±0.3 mm, depending on material thickness, grade, and part geometry.
What Affects Achievable Tolerance
- Material thickness — thinner sheet holds tighter tolerances than heavy-gauge plate.
- Material grade — stainless steel springs back more than mild steel after bending, requiring compensation in the tooling program. See material specs for grade-specific behavior.
- Bend length and tooling — longer bends and non-standard tooling can slightly widen achievable tolerance.
- Number of bends on one part — tolerance can stack across multiple bends if not accounted for in programming.
Designing Within Realistic Tolerance
If your assembly requires tolerances tighter than standard CNC bending can reliably hold, flag it clearly on the drawing before quoting. A modern CNC press brake with a proper tool bank can hold tight tolerances on complex angles, but this should be confirmed against your specific part, not assumed. Reference standards from the American National Standards Institute and process guidance from the Precision Metal forming Association are useful benchmarks if you’re specifying tolerance for the first time.
Why This Matters Before You Order
Parts rejected for out-of-tolerance bends are one of the most common causes of delay and rework in metal fabrication. Stating your required tolerance on the drawing at quoting time avoids this entirely.
FAQ’s
Standard CNC bending typically holds angular tolerances of about ±0.5 to ±1 degree and linear bend-position tolerances of roughly ±0.1 to ±0.3 mm, depending on material and thickness.
Yes. Stainless steel springs back more after bending than mild steel, so the tooling program must compensate for this to hold the same tolerance.
Thicker sheet requires more force and is more prone to minor variation during bending, so achievable tolerance is typically wider than on thin-gauge material.
Yes. Tolerance can stack across multiple bends if not accounted for during programming, so parts with many bends need careful sequencing to stay accurate.
Yes, always. Flagging your required tolerance at quoting time lets the fabricator confirm feasibility upfront, avoiding rejected parts and rework later.
