Press Brake CNC Bending
Complex Angles. Consistent Results.
15 CNC press brakes. A massive tool bank for complex profiles. 48-hour dispatch from payment confirmation.
Unlike standalone bending shops, 247 Cut Bend handles cutting and bending as a single integrated order. Upload once, get one quote, receive one delivery. No coordination between vendors.
CNC Bending Capabilities & Specifications
| Parameter | Specification |
|---|---|
| Bending Tolerance | 0.3 to 0.5 angular (material-dependent) |
| Linear Dimension Tolerance | 0.3 mm |
| Minimum Flange Length | 3 material thickness (minimum 6 mm) |
| Maximum Bending Length | Up to 3,000 mm |
| Stainless Steel Thickness Range | 0.5 mm to 10 mm |
| Aluminium Thickness Range | 0.5 mm to 8 mm |
| Minimum Inside Bend Radius | Equal to material thickness |
| Number of Press Brakes | 15 CNC units |
| Tool Bank | Extensive - V-dies, acute-angle tooling, box tooling, hemming |
Types of CNC Bending We Handle
Standard V-bends:
brackets, flanges, panels
U-channel / box forms:
enclosures, trays, housings
Offset bends:
step offsets for assembly alignment
Hemming:
folded edges for safety and strength
Multi-bend complex profiles:
up to discussion based on geometry
Acute angle bends:
below 90° with appropriate tooling

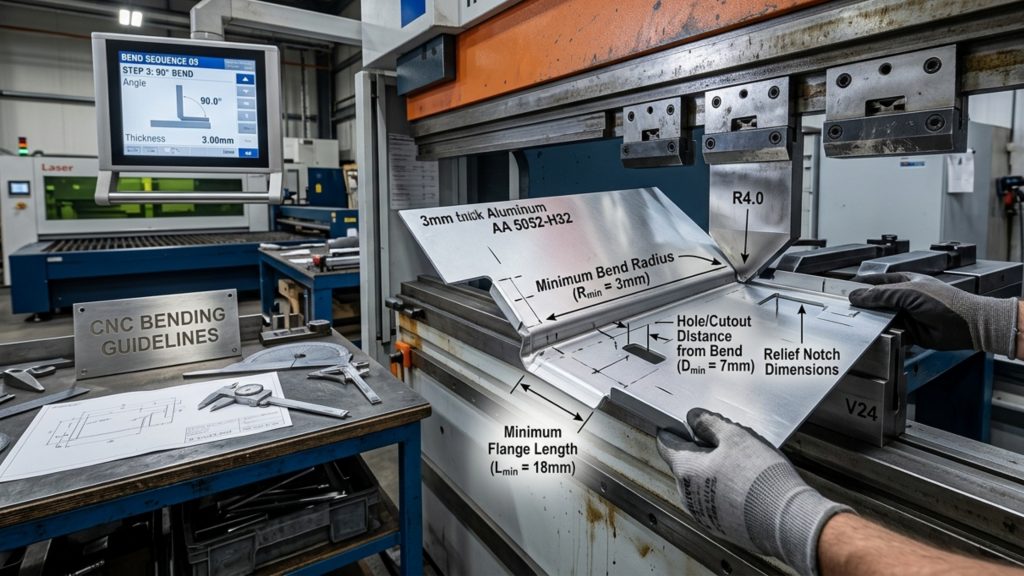

Design Guidelines for CNC Bending
Minimum Flange Length:
Flange length must be at least 3x the material thickness, with a minimum of 6 mm. Shorter flanges cannot be gripped by the tooling reliably.
Inside Bend Radius:
Specify the inside radius on your drawing. Default is equal to material thickness unless otherwise stated. Tighter radii cause cracking in thicker materials.
Hole-to-Bend Clearance:
Keep holes at least 2x material thickness away from the bend line. Holes too close to a bend will distort during forming.
Grain Direction:
For Stainless Steel, bending perpendicular to the rolling direction improves formability and reduces cracking risk. Our team accounts for this during nesting.
Symmetry & Complexity:
Symmetric parts are faster to set up and reduce tooling change time. If your part has complex asymmetric bends, contact us before ordering for a DFM review.
Cut + Bend in One Order - Why It Matters?
Traditional Fabrication Workflow
Find a laser cutting vendor > wait for quote > place order > wait for cut parts
Take cut parts to a bending shop > wait again > coordinate two delivery timelines
2 invoices, 2 contacts, double the risk of miscommunication
The 247 Cut Bend Workflow
Upload your STEP or DXF file - flat pattern or 3D model
Receive a combined, itemised quotation inside 3 hours
Pay once, both operations run in our single facility
Parts dispatched within 48 hours
One vendor. One quote. One delivery. That is the 247 Cut Bend difference.
Industries We Serve
Automotive & Auto-Ancillary components
Industrial machinery frames, brackets, enclosures
Electrical panel manufacturing
Pharmaceutical equipment parts
Food processing & dairy equipment
Architectural & interior metalwork
Medical device components
Agricultural machinery parts
Common Questions About Our Services
What is the tightest bend angle you can achieve?
We can achieve acute angles (below 90°) using appropriate tooling. Specify the required angle on your drawing. Minimum achievable angle depends on material type and thickness.
Can you bend parts that were cut elsewhere?
Yes. If you have already cut parts, we can bend them as job work. The 48-hour service time starts from when we receive your material at our Vadodara facility.
Do you offer springback compensation?
Yes. Our CNC press brakes are programmed with springback compensation values per material grade and thickness, ensuring accurate final angles.
Can you bend aluminium without cracking?
Yes, with proper grain direction orientation and correct inside radius selection. Our team handles this by default.
